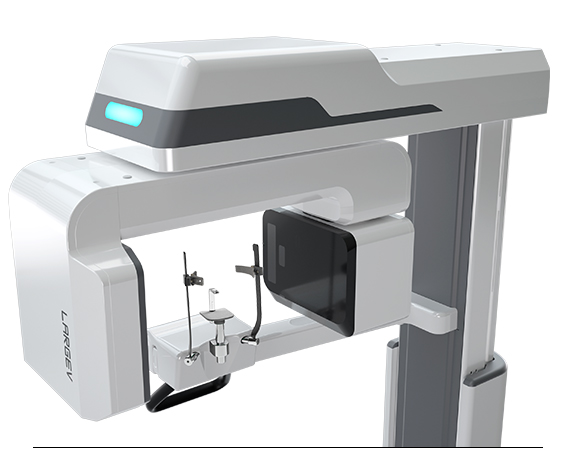

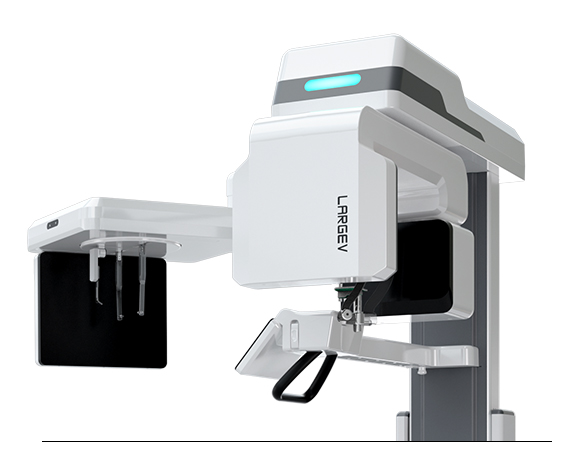

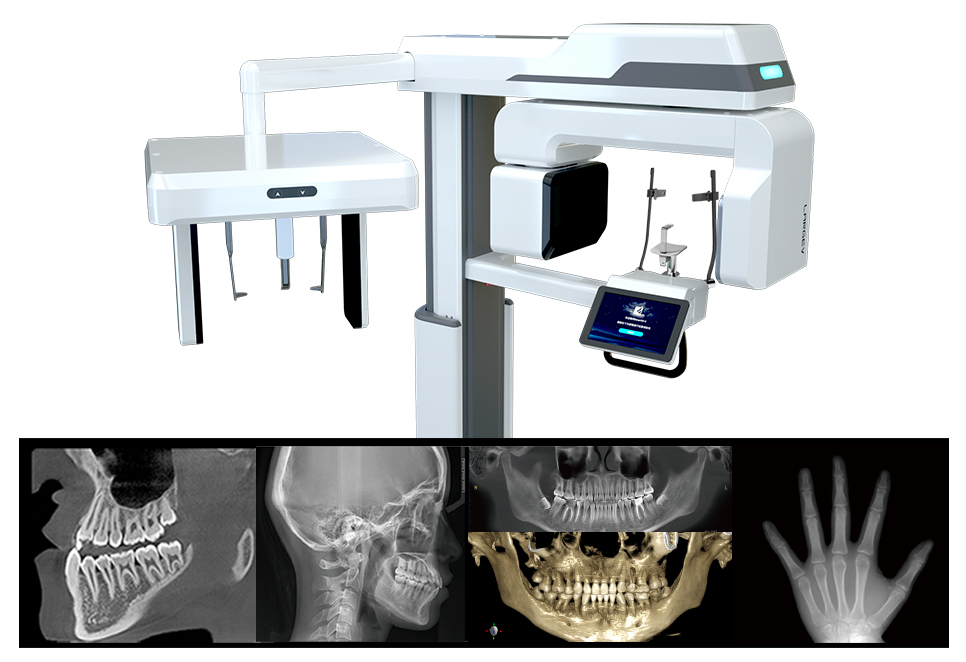

Smart3D-X - LargeV

Producto
Software
Imágenes

CT / CEPH / PAN

Cuatro Modos de Escaneo

SD：Escaneo Estándar

FS：Escaneo Rápido ( Velocidad de escaneo CT hasta 6s)

HD：Escaneo de Alta Definición

UHD：Ultra-Escaneo de Alta Definición

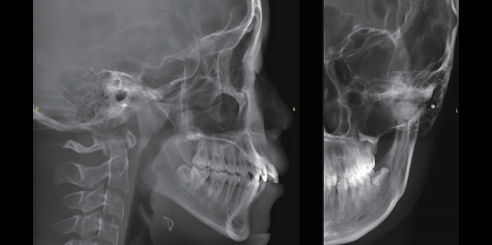

CEPH de un solo disparo

Escaneo de un solo disparo en 1 segundo para imagen cefalométrica estable.

Evita artefactos por movimiento del paciente.

Más Opciones

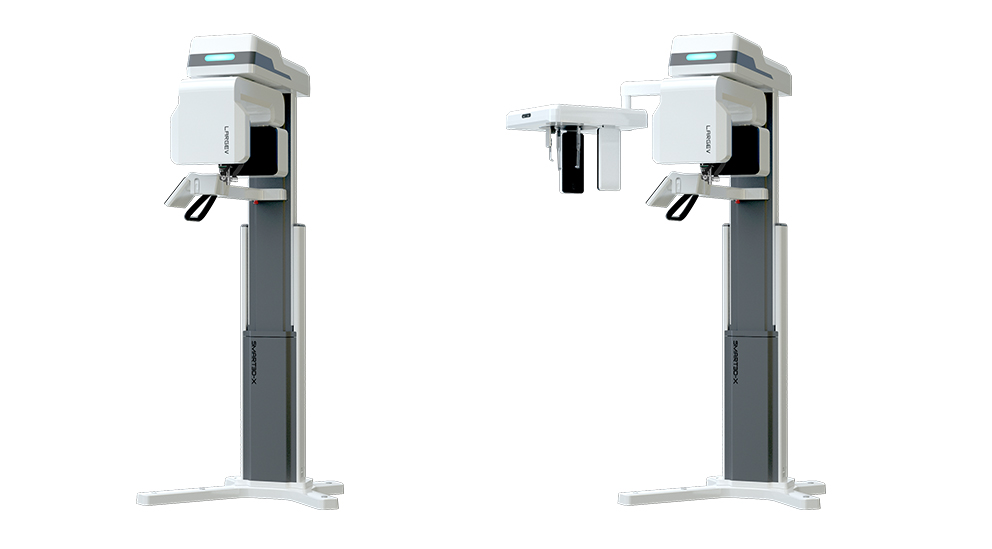

2 in 1(CBCT+PAN) & 3 in 1(CBCT+PAN+CEPH)

Sistema de Enfriamiento

Disparo sostenible sin enfriamiento Sistema de Enfriamiento is Equipped to Break Through The Traditional Cooling Limitations and Ensure The Stable Operation Under High Temperature And Sustainable Shooting Scenes

Dos Opciones de PAN

PAN 2D y PAN reconstruido a partir de datos de imagen 3D

Alta Resolución

Alta Resolución up to 3.0-5.0 lp/mm

Tamaño de vóxel 0.04-0.3 mm

Tamaño de píxel del detector HD hasta 95μm

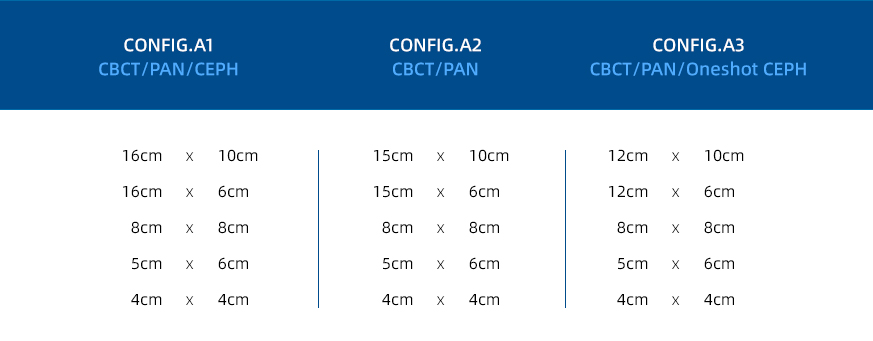

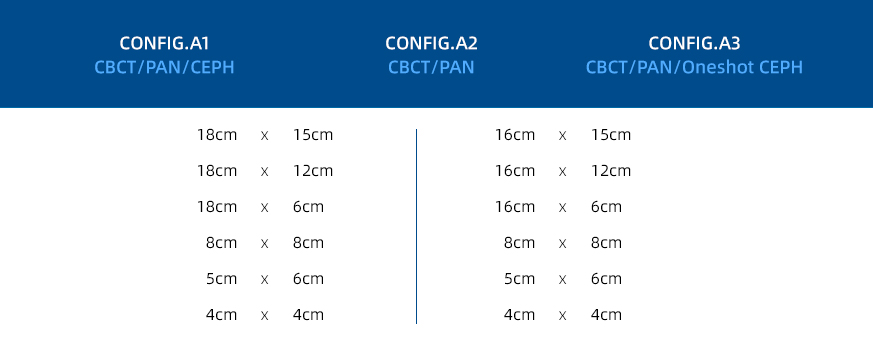

FOVs Opcionales

Smart3D-X

Smart3D-X SE

Smart3D-X Pro

sponsor

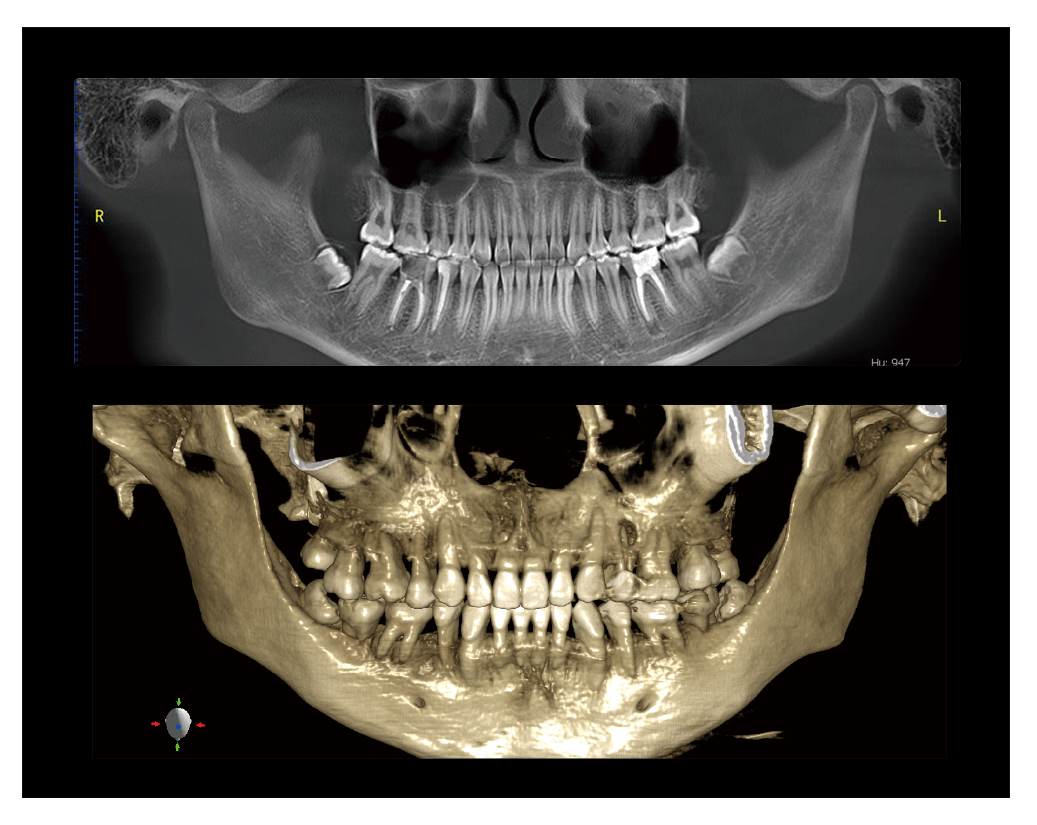

360°scan and 800 frame images with unique CT algorithms
QuartZ 4 scan platform, supporting flexible scan mode
Multiple focus layers in panoramic imaging, fitting the patient's dental arch
Easy-to-target scan area
8-9 positioning lasers with face-to-face communication to posit precisely
X-type base is convenient for wheelchair-bound patients
10＂LED touch screen
Storage box design
Voice reminder
The Compatible Globally Power Supply Wide Voltage Range: AC 110~230V 50/60Hz
Simplified Chinese/Traditional Chinese/English/French/Spanish/
Rusian/Polish/Turkish/Portuguese
Carbon Fiber Cheek Clip & Stable Jaw Bracket To Create a Stable Shooting Support System

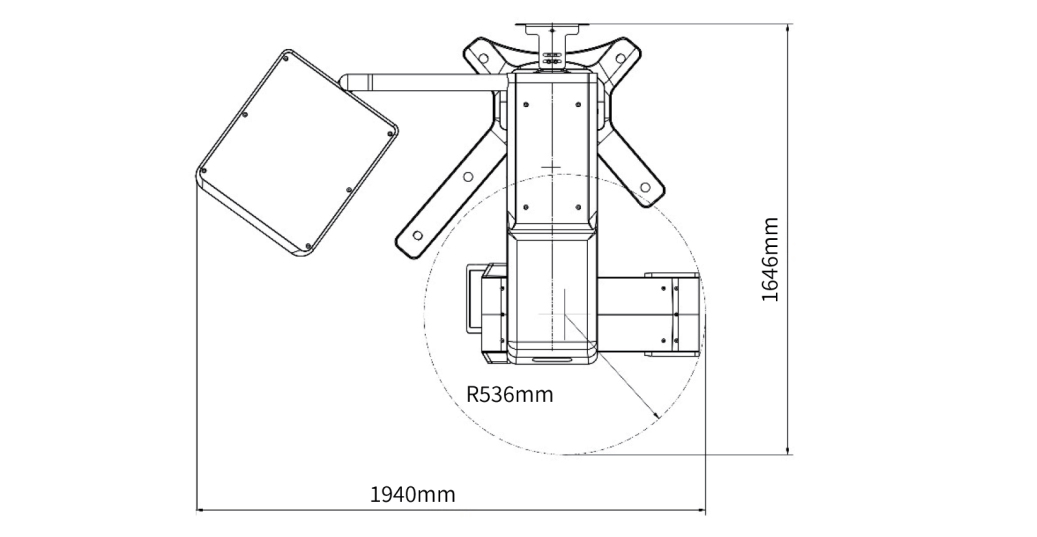

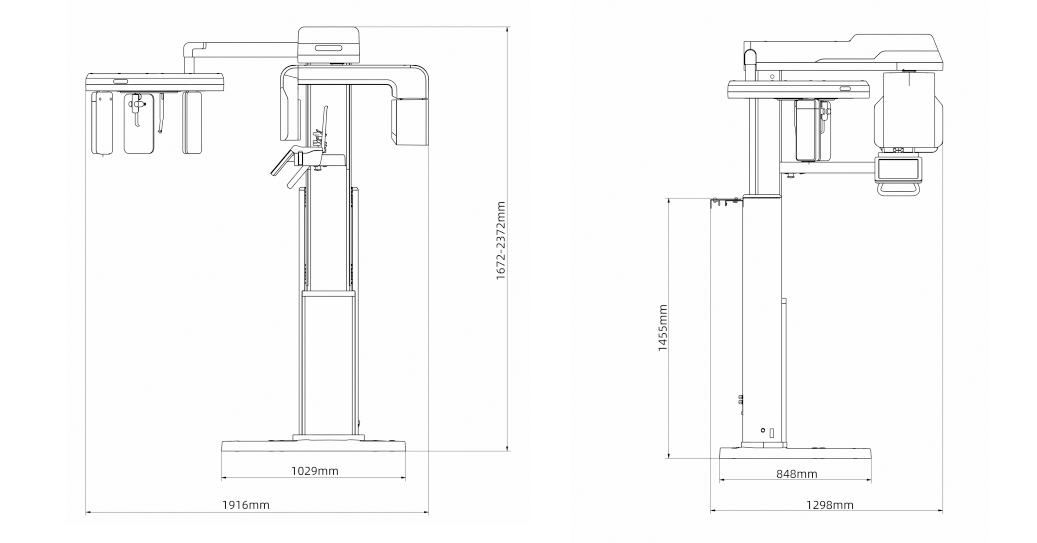

Product Size Display（With Ceph）

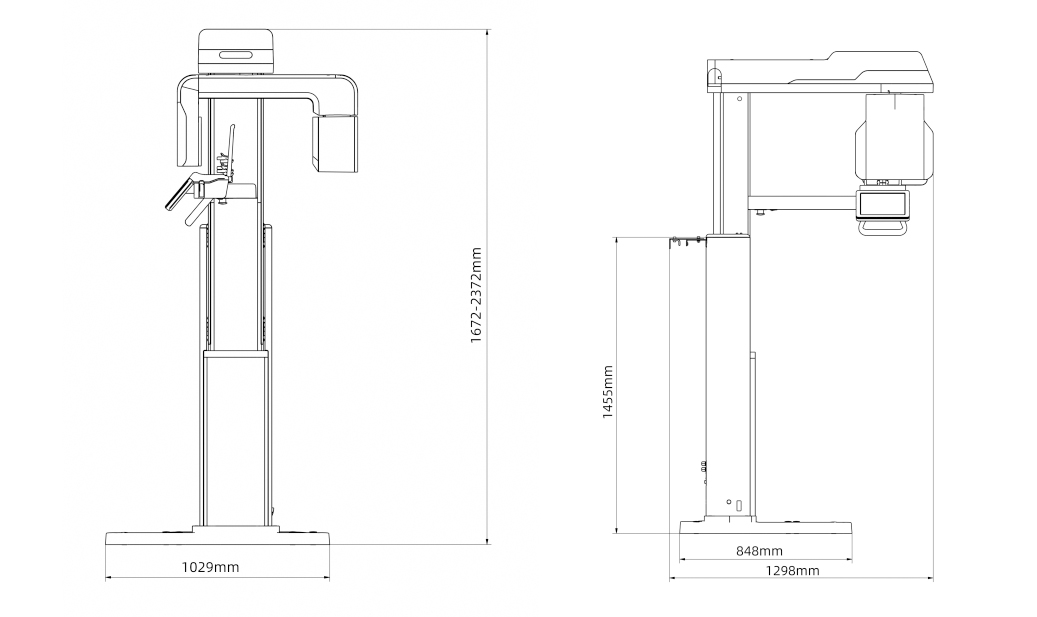

Product Size Display（Without Ceph）

Shielding Room Diagram

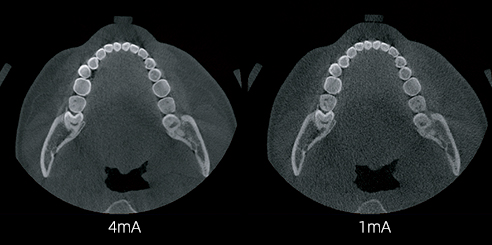

IA + Baja Dosis

Impulsado por el algoritmo de reconstrucción basado en aprendizaje profundo CT reconstruction algorithm, the Smart3D-X can obtain tomografía más definida while further reduciendo la dosis de radiación, continuing to raise the estándar de la industria for control de baja dosis.

IA + Nervio

The system can label the neural tube automatically in the CT image, providing great convenience for diagnosis.

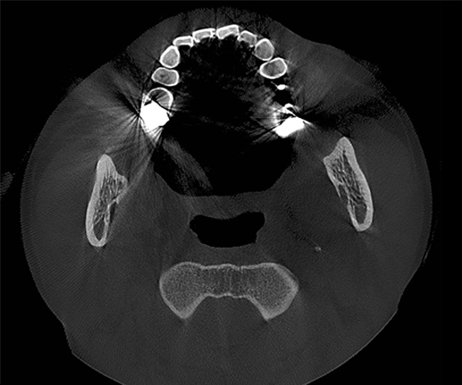

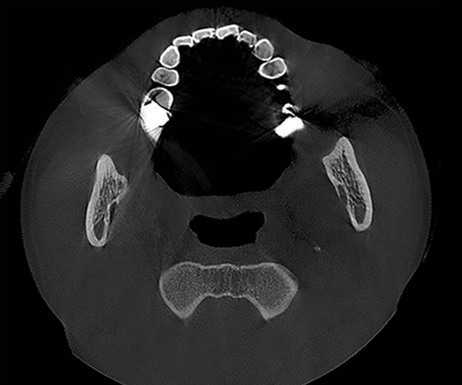

Reducción de Artefactos Metálicos

With the new T-MAR reduction module for metal artifact removal, the system corrects metal artifacts intelligently. It avoids over modification and saves the original clinical data.

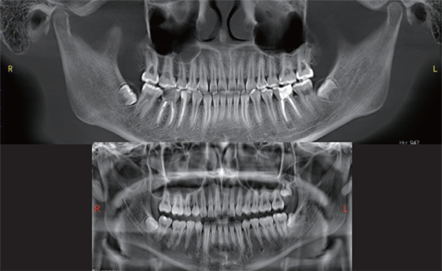

AI+PAN

CT reconstruct panoramically with the new deep learning-based CT reconstruction algorithm, the system can obtain a precise CBCT image. Panoramic images together with the new intelligent auto-focus and multilayer panoramic technology, the system automatically fits the best panoramic curves and reconstructs a better image.

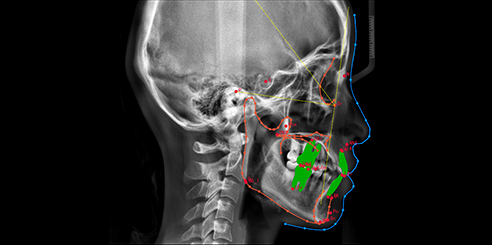

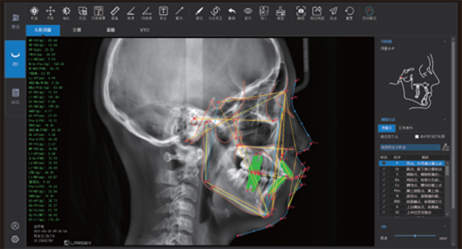

IA + Ceph Measurement (Optional)

The neural network is trained by mega data, which automatically identifies orthodontic anatomical landmark points, draws anatomical structures and outputs measurement reports according to the selected measurement methods.

AI + Oral Implant

LargeV AI Implant integrates advanced AI technology to automatically measure bone height, bone width, and the distance to adjacent teeth. It intelligently recommends suitable implant models and enables automatic implant placement. This helps doctors complete precise implant planning in a short Hora, significantly enhancing the accuracy and safety of implant surgeries, while providing patients with a more reliable digital implant solution.

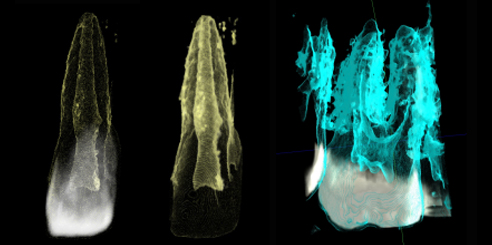

AI + Tooth Perspectives

Tooth Perspectives: 3D reconstruction of a single tooth is carried out to clearly display the shape of the tooth, the form of the pulp cavity, and the 3D structure of the root canal and gums.

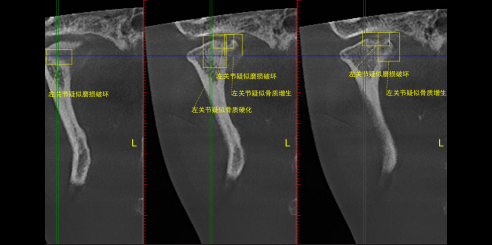

AI + TMJ Analysis

It helps clinicians quickly identify abnormalities such as joint wear, hyperplasia, and sclerosis. By objectively quantifying lesion severity, it reduces missed or incorrect diagnoses, enhances efficiency, and offers valuable reference for orthodontics, implantology, and maxillofacial surgery.

AI + Maxillary Sinus Analysis

Maxillary sinus conditions are often linked to odontogenic infections and implant surgery risks. It enables clinicians to assess sinus health, detect early lesions, and quantify disease extent. It improves diagnostic efficiency and accuracy, providing strong support for treatment planning.

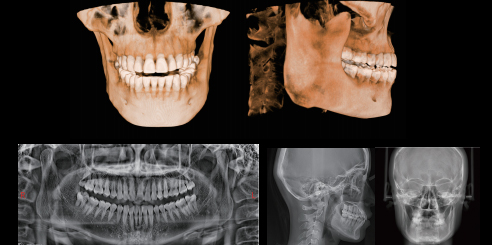

Multiple Images

Support CT / PAN / CEPH.

Lateral Cephalometric Measurements

In comparison to traditional two-dimensional cephalometric radiographs, lateral cephalograms on CBCT can better reflect the true craniofacial morphology. With higher accuracy in landmark point identification and line distance measurement, it can avoid the distortion of patient measurement data caused by superimposition, image blurring and facial asymmetry of two-dimensional anatomical structures.

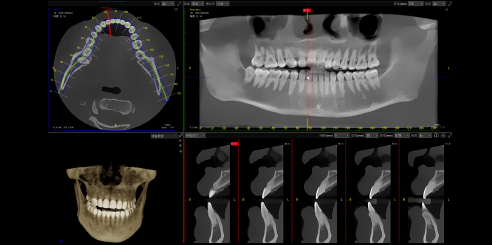

AI+PAN

CT Reconstruct Panoramically: learning-based CT reconstruction algorithm, the With the new deep system can obtain a precise CBCT image. Panoramic Images: Together with the new intelligent auto-focus and multilayer panoramic technology, the system automatically fits the best panoramic curves and reconstructs a better image.

AI+Root-Bone Relationship

AI technology provides diagnostic support and treatment guidance for fields like orthodontics, implantology, periodontics, and extraction. By analyzing the relationship between the bone and the teeth, it enhances treatment accuracy, improving success rates while minimizing complications during and after procedures.

AI+Bone Graft Volume Estimation

Accurate estimation of bone graft volume is critical in implant surgery. AI helps doctors calculate the precise amount of bone graft required, reducing the risk of surgical failure due to either insufficient or excessive graft material.

AI+Maxillary Bone Segmentation

AI aids in assessing bone structure, identifying pathologies, and analyzing the alveolar bone for reliable insights into implant placement and bone graft volume estimation. This offers doctors a solid foundation for precise treatment planning.

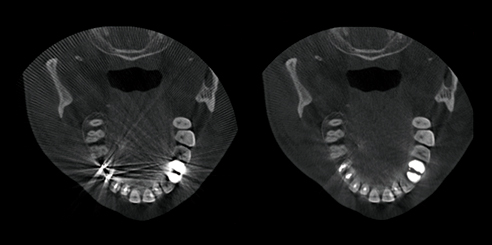

Reducción de Artefactos Metálicos

With the new T-MAR reduction module for metal artifact removal, the system corrects metal artifacts intelligently. It avoids overmodification and saves the original clinical data.

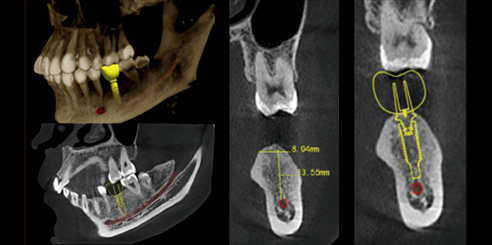

Implant Simulation

It can evaluate the bone quality and bone quantity of the implant area, automatically outline the neural tube. Clarifying the relationship between the implant position and the adjacent anatomical structure to accurately select the implant position, the optimal length and diameter of the implant. It can improve the success rate, and avoid possible nerve or blood vessel damage.

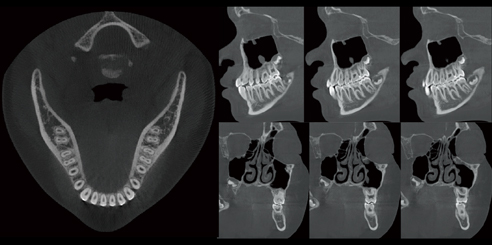

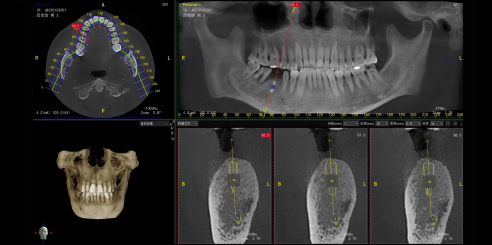

Multi-Planar Reconstruction (MPR)

In SmartVPro software, doctors can simultaneously view axial, coronal, and sagittal images. The software also allows for customized slice positioning, enabling buccolingual and mesiodistal cross-sections at any desired location. This feature enhances diagnostic convenience by providing comprehensive imaging perspectives.

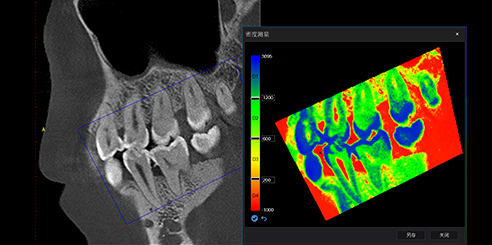

Density Measurement

Visual assessment of bone quality, bringing greater convenience to dentists.

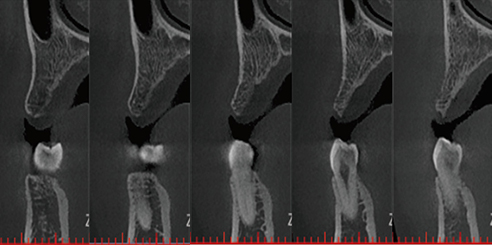

Image Slice for Implanting

It permits the evaluation of the overall osteogenesis and facilitates the macroscopic observation of the bone condition around implants.

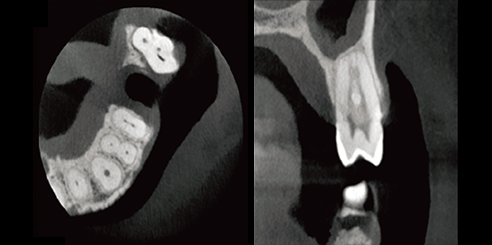

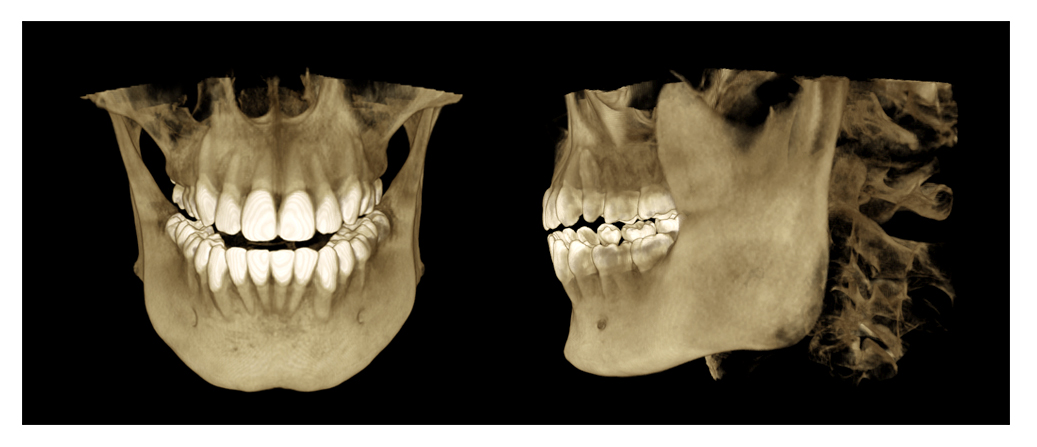

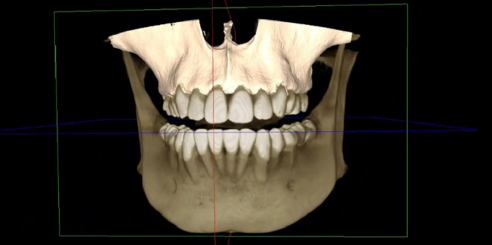

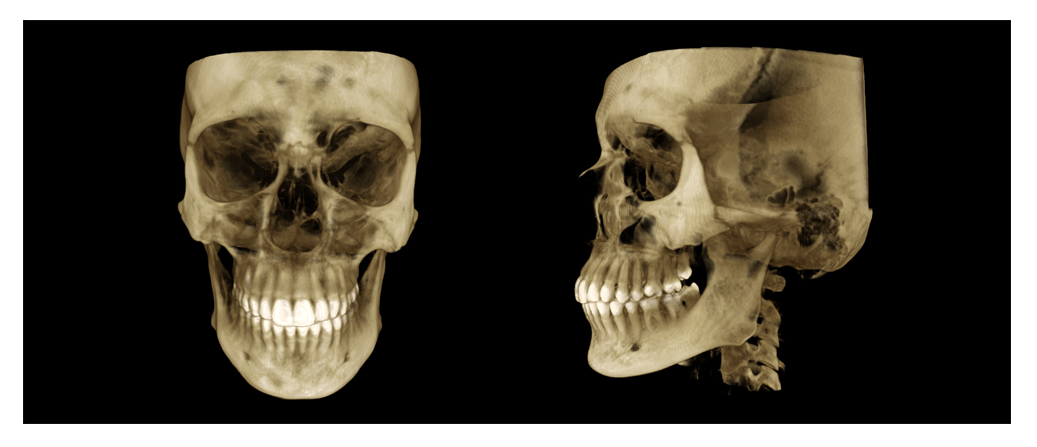

3D Fine Reconstruction

The smallest Tamaño de vóxel reaches 0.05 mm, which is more suitable for the diagnosis of dental pulp disease.

IA + Baja Dosis

Impulsado por el algoritmo de reconstrucción basado en aprendizaje profundo CT reconstruction algorithm, the Smart3D-X can now obtain more deﬁned tomography while further reduciendo la dosis de radiación, continuing to raise the estándar de la industria for control de baja dosis.

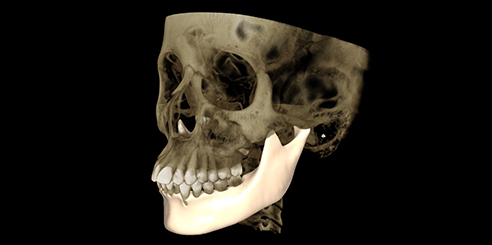

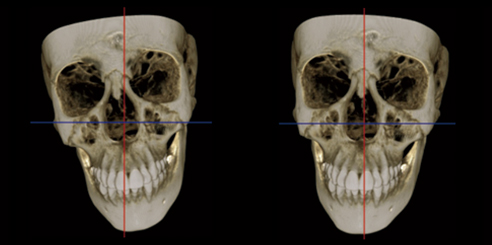

AI+Automatic Head Position Correction

It enhances the accuracy and reliability of CT imaging, producing more precise lateral cephalometric images. It also ensures that scan results at different Horas can be compared and analyzed effectively.

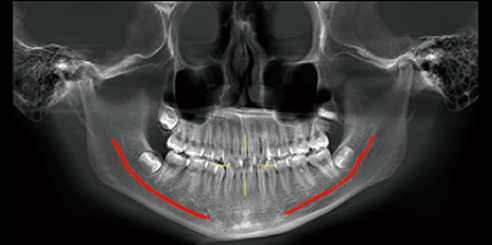

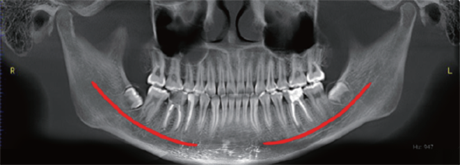

IA + Nervio

This function can locate the shape of the inferior alveolar nerve in 3D space, as well as the positional relationship between the relative alveolar bone wall, adjacent teeth, and implants, providing a reference for doctors, greatly improving work efficiency and reducing surgical risks.

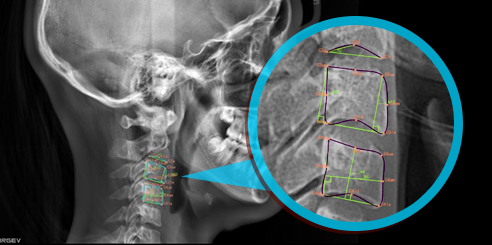

AI+Predict Bone Age by Observing the Cervical Spine

With bone age analysis, the patient's growth and development level and maturity can be accurately evaluated. It can provide reference for the diagnosis of oral diseases and the selection of orthodontic treatment solution.

IA + Ceph Measurement(Optional)

The neural network is trained by mega data, which automatically identiﬁes orthodontic anatomical landmark points, draws anatomical structures and outputs measurement reports according to the selected measurement methods.

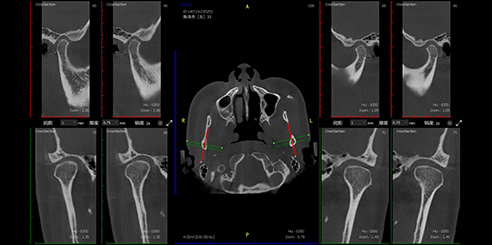

AI+TMJ Automatic Positioning Diagnosis

The display mode of comparing the left and right temporomandibular joints, with the cross positioning line automatically located at the temporomandibular joint, facilitates the diagnosis and treatment of temporomandibular joint diseases by doctors.

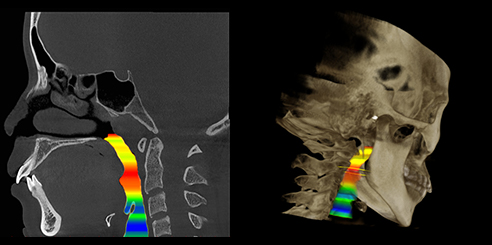

AI+Airway Measurement

Quick segmentation of airway with two modes，automatic and manual, providing accurate imaging information for the discovery and diagnosis of airway diseases.

AI+Mandible Segmentation

It accurately evaluates the morphology and position of jaw, as well as provide doctors with reliable anatomical structures.

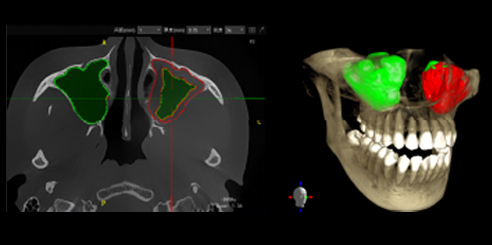

AI+Maxillary Sinus Segmentation

This leading technology not only provides a high-precision 3D model of the superior maxillary sinus, but also helps doctors to distinguish the position and size, which contributes to customized surgical plans.

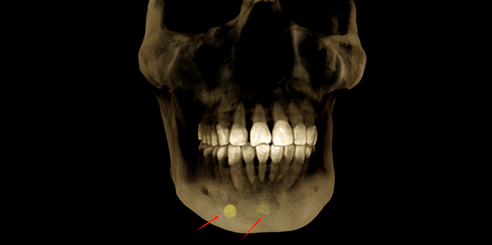

AI + Lingual Canal Detection

This helps doctors accurately locate and identify the position and structure of lingual canals, understanding its anatomical features in the mandible. This is crucial in preventing unexpected bleeding during implant surgeries.

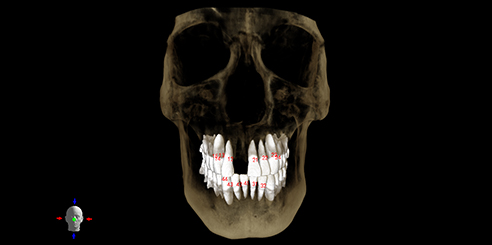

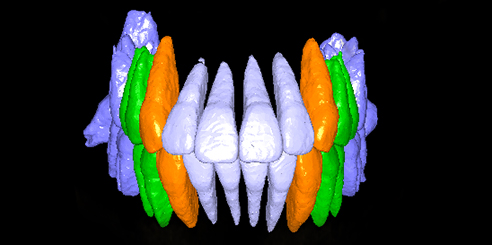

AI+Teeth Segmentation

With this feature, doctors can more accurately understand the shape and position of the teeth, diagnose issues such as cavities, tooth deformities, and missing teeth, and provide patients with more precise treatment solutions.

AI+Simulated Tooth Extraction

As a tool for doctor-patient communication, AI simulated tooth extraction uses virtual scenarios to demonstrate the tooth extraction procedure and highlight important considerations. It helps patients to understand the treatment process.

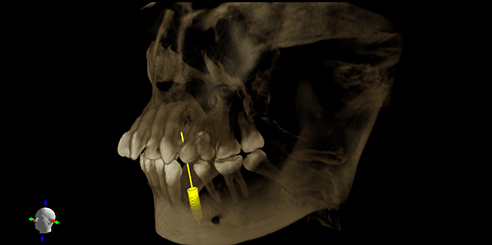

AI+Automatic Implant Placement

By segmenting the patient's oral structure, AI algorithms determine the best position and angle for implant insertion. It controls the risk of implantation, minimizes planning Hora.

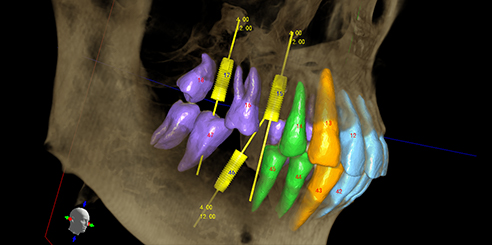

AI+Multi-Implant Placement with One-Click

This feature is ideal for multiple teeth, partial, and full-mouth implants. It significantly reduces the Hora for doctors to design implant surgery plans. It enhances doctor-patient communication efficiency and increases the acceptance of treatment plans.

AI + Root Canal Segmentation

It assists doctors in quickly and accurately identifying the position, shape, and structure of root canals. This provides more precise diagnostic information and treatment planning, proving essential for root canal treatments, apical surgeries, and other dental procedures.
